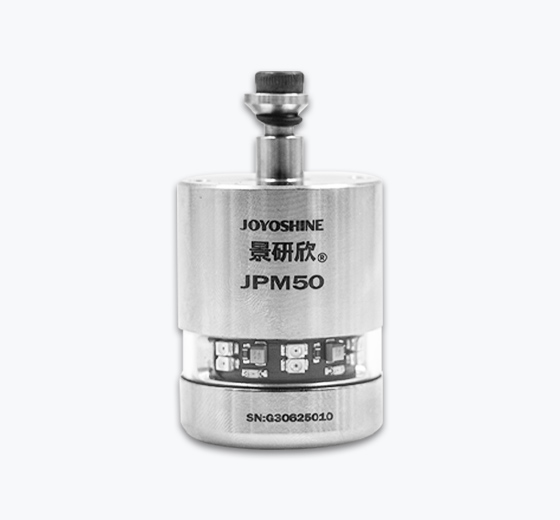

Optical Transmission Probe

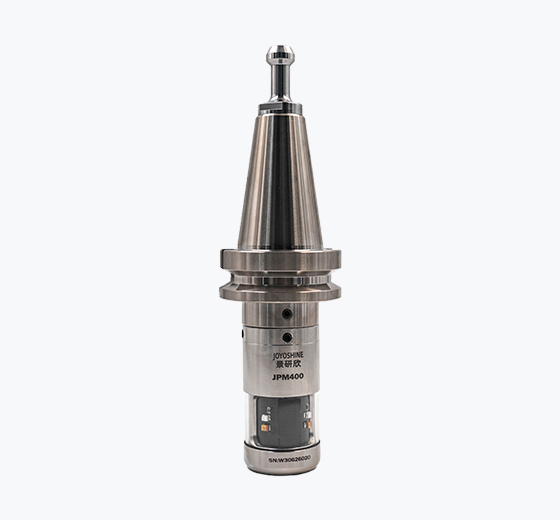

JPM40/JPM400 Radio Probe

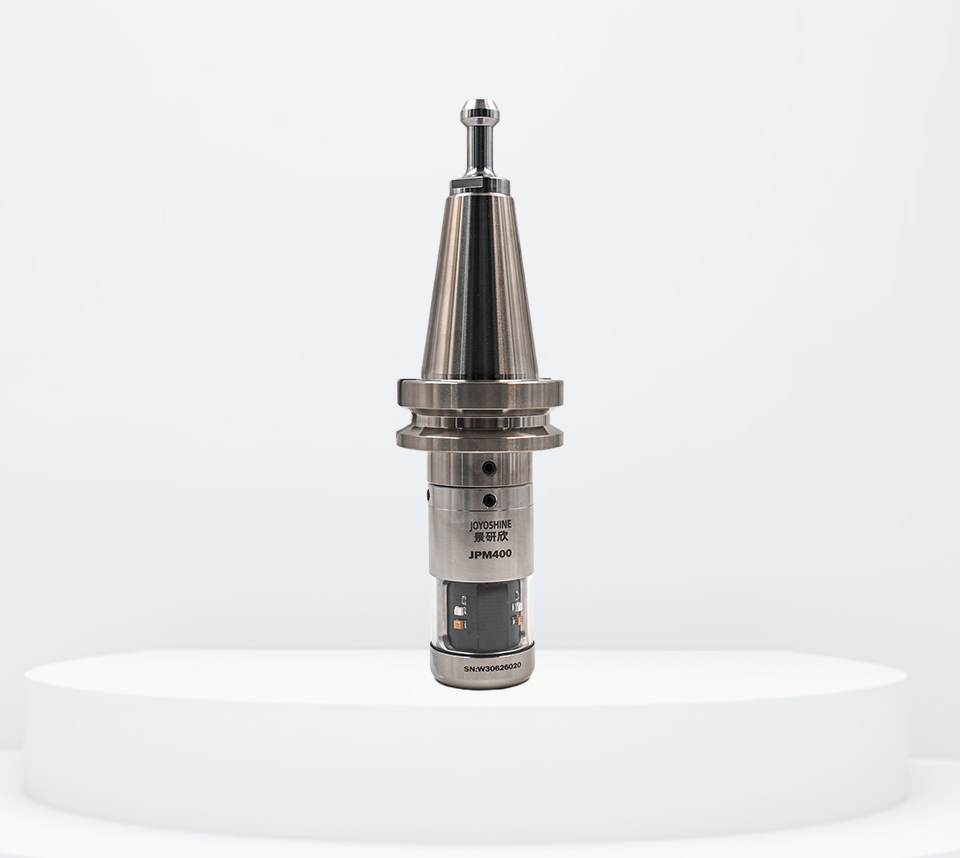

The Radio transmission probe operates through radio signal transmission, it employs 2.4GHz radio frequency hopping transmission technology, which can avoid any potential interference and transmission dead zones.
Being switched-on and switched-off without requiring M-code control, it automatically measures the origin of the workpiece and dimensions after machining at high speed and with high precision. Mainly, it allows machine tools and robots to reduce setup time, prevent machining defects, improve cycle time, and eliminate dependence on skilled operators and jigs.
It maintains excellent reliability even in high-density radio frequency environments. Therefore, the wireless probe is an ideal choice for operation on all size of machine.
Exceptional anti-interference capability.
Globally recognized 2.4 GHz RF waveband that compliant with radio regulations in all major markets.
Modularly designed, low maintenance costs.
Super power-efficient.
Robust and stable design with a buffer mechanism to protect the machine spindle.
1.00 µm 2σ repeatability.
JPM40

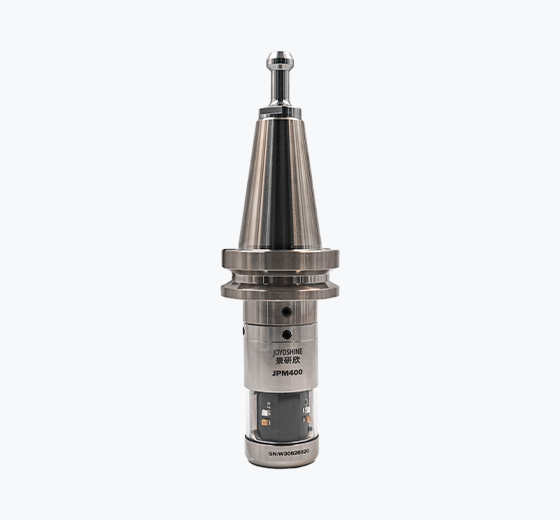

JPM400
SizeLength:67mm,Diameter:40mm
Weight without Shank (including batteries)345g
SealingIP68
Transmission Type2.4GHz radio frequency hopping transmission
Operation Temperature0°C to 60°C
Stylus Overtravel LimitsXY±15°,Z+5.0mm
Battery2 × ½ AA 3.6 V Lithium-thionyl chloride
Stylus Trigger ForceXY=1.0N, Z=6.0N
Battery Life240 hours (5% usage per shift)
Unidirectional Repeatability≤1μm(2σ)
Shank(optional)HSK100A
Operating Range≤15m
Hard Wire(optional)5.0m,10.0m,15.0m,20.0m
FeatureSpindle protection
SizeLength:75mm,Diameter:40mm
Weight without Shank (including batteries)345g
SealingIP68
Transmission Type2.4GHz radio frequency hopping transmission
Operation Temperature0°C to 60°C
Stylus Overtravel LimitsXY±15°,Z+5.0mm
Battery2 × ½ AA 3.6 V Lithium-thionyl chloride
Stylus Trigger ForceXY=1.0N, Z=6.0N
Battery Life240 hours (5% usage per shift)
Unidirectional Repeatability≤1μm(2σ)
Shank(optional)BT40, BT50, HSK63A, HSK63F, HSK40E
Operating Range≤15m
Hard Wire(optional)5.0m,10.0m,15.0m,20.0m
FeatureSpindle protection
JPM400
JPM40
Radio performance envelopes
