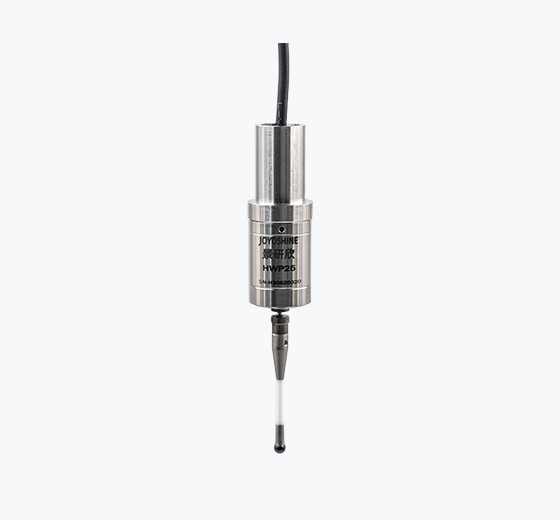

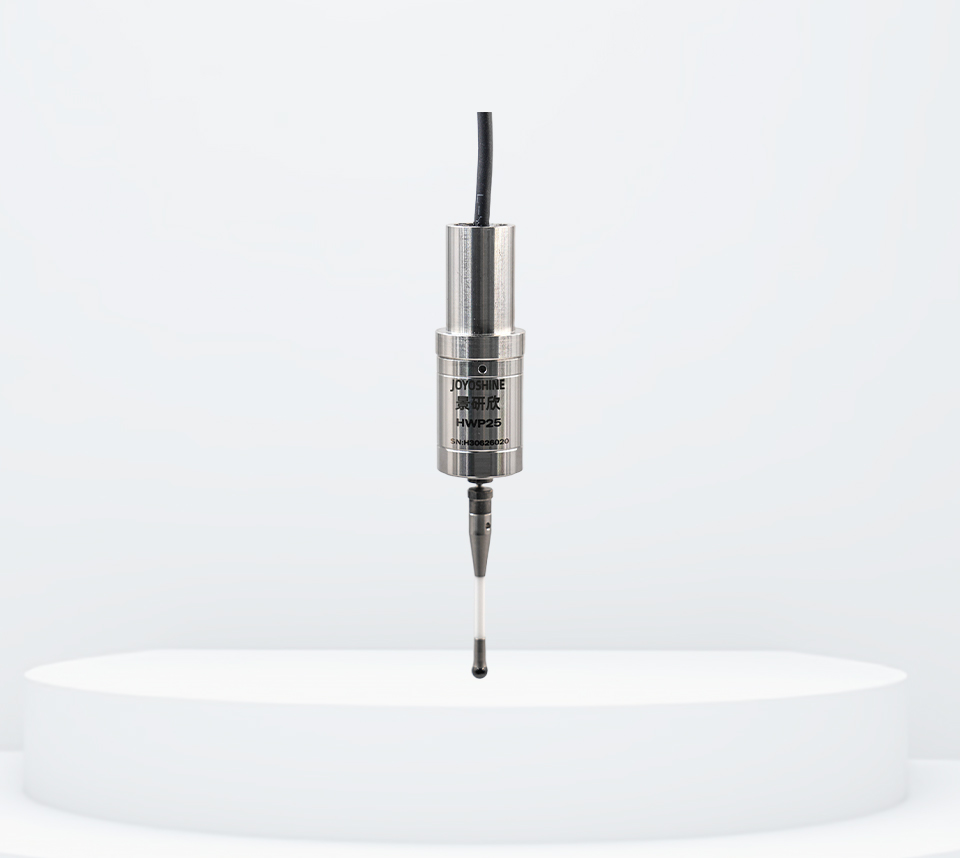

Hard-wired Transmission Probe

HWP25

HWP25 is a compact, multi-purpose probing system primarily used for workpiece inspection and workpiece alignment on various types of lathes, machining centers, grinding machines, high-gloss machines, precision engraving machines, and more.

Get a quote

Specification


SizeLength:71mm Diameter:25mm

Stylus Overtravel LimitsXY±15°， Z+5.0mm

Transmission TypeHard-wired

Unidirectional Repeatability1.0μm(2σ)

Compatible InterfacesIF40

Stylus Trigger ForceXY=1.0N, Z=6.0N

Recommended StylusUse the stylus as needed

SealingIP67

Weight245g

Operation Temperature0°C to 60°C

Sense directions±XY,+Z

Dimension

HWP25
