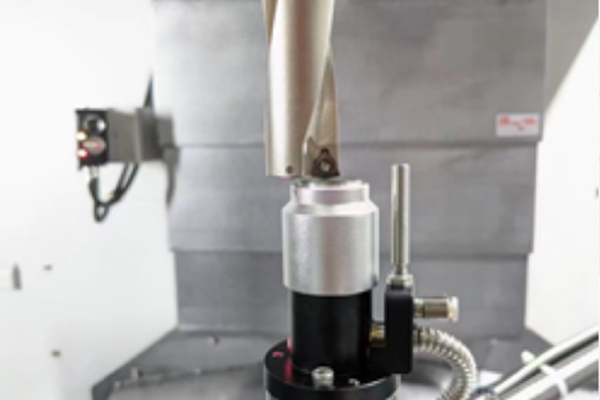

Single-axis Tool Setter

The single-axis tool setter is a ON/OFF high-precision touch sensor used for setting tool length, checking the breakage and compensate for thermal growth on a CNC machining center. Tool condition (length and chips) is monitored to prevent machining defects due to wear and thermal displacement.

Automated in-machine measurement eliminates manual setup work and machining defects resulting in improved productivity.

Get a quote

Key Features and Benefits

Prevents machining defects due to thermal displacement and wear.

Eliminates operator burden by reducing setup time by 90%, including conventional test cutting and manual measurement.

Eliminates dangerous on-machine tool setting.

Proven kinematic design.

Ultra compact design for a wide range application.

Cost-effective and reduce scrap.

1.00 μm 2σ repeatability.

Automatically air blasting (Optional).

Specification

CT20

CT30


Contact diameter (Max)20mm

RatingDC24±10% 20mA(max)

Transmission TypeHard-wired

Air BlastingOptional

Repeatability0.002mm, (At operating of speed 50-200mm/min)

SealingIP67

Sense Direction+Z axis

Cable5m x 6 cores screened cable

Life Time>500 million

Operating Temperature0°C to 60°C

Height80mm

MountingM5 x 25mm cap head screws(x4)

Pretravel5mm

Contact diameter (Max)30mm
